TO evolution olfactometer

The 6-station TO evolution stationary olfactometer combines the latest scientific and technological advances with decades of practical experience – enabling us to set new benchmarks in the field of olfactometry.

The TO evolution olfactometer allows for easy setup and is simple to maintain due to its new modular design. You can be assured of the reliability of our well-known robust equipment, manufactured in-house in Germany. The heart of the TO evolution olfactometer is the ultra-modern and purpose designed dilution system, which is based on the proven principle of combining gas jet pumps and fixed sapphire orifices.

The TO evolution software package provides an olfactometer control software to support your laboratory in delivering odour measurements at the highest quality; as well as a state of the art Laboratory Information Management System (LIMS) which has been specifically designed to meet the needs of odour laboratories.

Supported methods

Yes / No (EN 13725)
Dual Forced Choice (EN 13725)
Triangular Forced Choice (ASTM 679)
Intensity (VDI 3882 Part1)
Hedonic Tone (VDI 3882 Part2)
Forced Choice / Hedonic Tone (NVN 2818)
Forced Choice / Intensity
Triangular odor bag method – GB/T 14675 – 93

Details

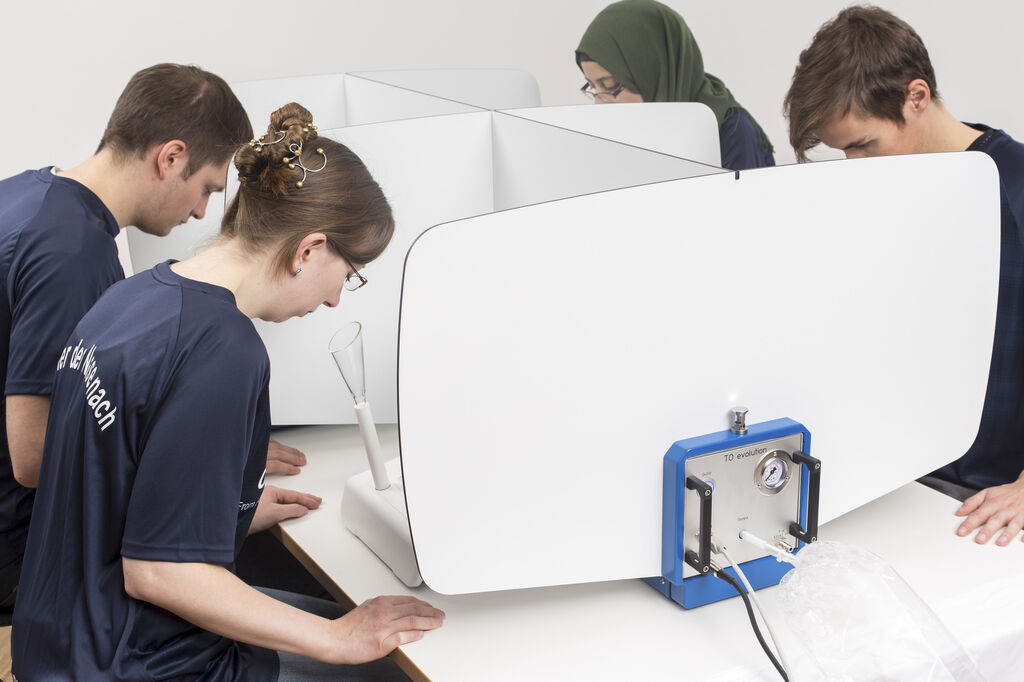

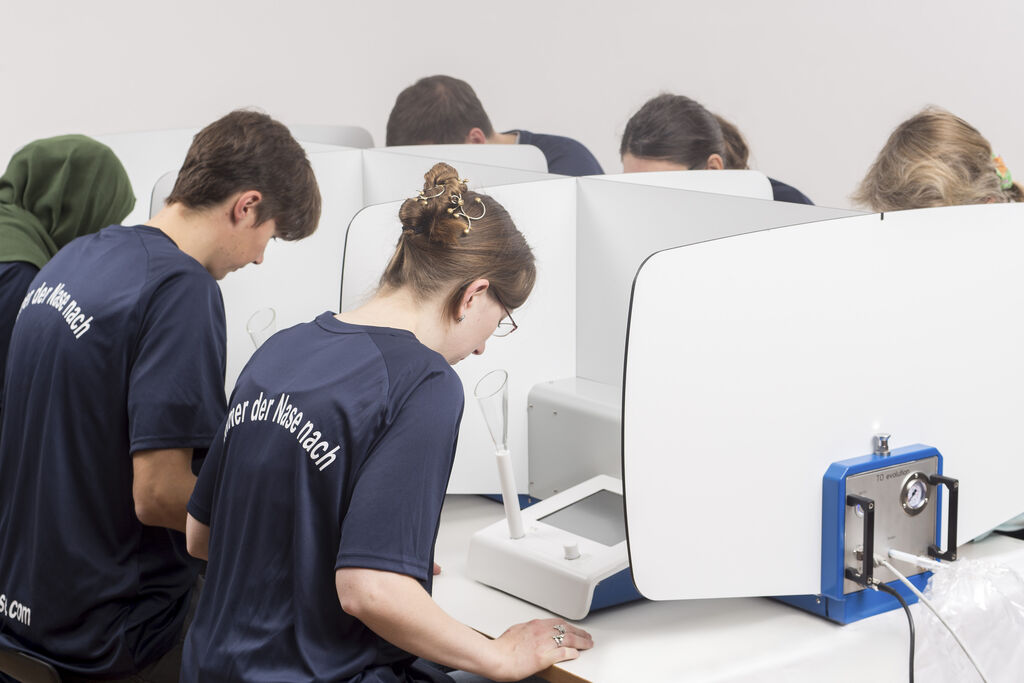

Available with six panellist stations
Unique and specially designed dilution system
Fully automatic, 100 % compliant to EN 13725:2003
Easy to set up and simple to maintain
Fastest analysing time
Integrated heating system and extensive flushing functions to prevent contamination
Dedicated laboratory information management system (LIMS) for odour laboratories; fully traceable
Ergonomically designed with optimized human-to-machine interface

Testimonials

The TO evolution olfactometer and the services offered by Olfasense for the maintenance and calibration of this equipment enable us to offer our customers a high quality service (accuracy, repeatability and speed of analysis) to the highest international standards. We particularly appreciated the possibility of shipping Olfasense our dilution unit for the annual accredited calibration. By planning this operation, it did not affect the productivity of the laboratory. We have had the pleasure to obtain our accreditation according to ISO 17025 with our new equipment which has met all the expectations of the evaluators of the BELAC (design, calibration, data protection, stability, precision, reliability …).
Loïc Raymond, Technical Manager for odours and gas chemistry at Odometric

Odournet UK Ltd purchased two TO evolution olfactometers in 2015 and 2016, from Olfasense GmbH. Olfasense have provided a great service, with efficient supply and installation of our olfactometers and knowledgeable, friendly support whenever we’ve needed it. We were quickly able to integrate these olfactometers into our long-standing UKAS accreditation. We have always been very confident in this technology, but have recently received the results of the worldwide interlaboratory comparison that we participated in, earlier in 2016, and are exceptionally happy with our achievement using the TO evolution olfactometers. We were within the top 3 places, for accuracy, out of 36 participating similar odour labs!
Lucy Sutton, Quality Manager at Odournet UK Ltd

We wish to thank Olfasense GmbH for the services the Company provided in the start-up of our Dynamic Olfactometry Laboratory, the first installed in Central ltaly. Olfasense GmbH took care to build up the system and the equipment was set up successfully. At present, our Dynamic Olfactometry Laboratory has already qualified a significant number of panel members and it’s fully operational. The annual internal audit was carried out by the University of Perugia in February 2017 and the auditors really appreciated the olfactometer (audit report conclusions: “The organization shows a good level of dynamism regarding the ability to seize business opportunities in the economic environment in which it operates, as evidenced by the opening of a new laboratory for the measurement of the concentration of odour substances in the air (Dynamic Olfactometry)”). Olfasense also organized a very effective theoretical and practical training about EN 13725, performing sampling, panel selection, and measurements.
Michele Goretti, Quality Manager & Researcher at the University of Perugia

Technical Data

General Details

Manufacturer

Olfasense GmbH, Germany

Dimension (L x W x H) - Weight

1965 x 900 x 550 mm – 57.5 kg

Maximum calibration interval

12 months (according to EN 13725)

Warranty

24 months (warranty extension up to 5 years through service contracts possible)

Technical Specifications

Dilution principle

Gas jet pumps and calibrated precision orifices for sample dosage

Vent for surplus diluted odour

Outlet air via active carbon filter

Number of panel members working simultaneously

1 to 6

Analyses time for one sample (EN 13725)

5 min ( with 4 or 6 panel members working simultaneously)

Dilution range

2² (1:4) - 2¹⁶ (1:65,536) – yes/no method
2³ ( 1:8) - 2¹⁷ (1:131,058) – dual-forced choice method
2² (1:4) - 2¹⁶ (1:65,536) - triangular forced-choice method

Interval steps

Factor √2 (1.4) - 28 dilution steps
Factor 2 - 16 dilution steps

Dilution accuracy

< 5%

Response / setting time

< 0.1 sec

Required sample volume

~ 500 OU/m³ - 1l (yes/no), 3.5l (d-f-c) *
~ 64 OU/m³ - 3l (yes/no), 14.5l (d-f-c) *
< 16 OU/m³ - 10l (yes/no), 54l (d-f-c) *

*(estimation with default settings)

WiNose LIMS - Your new odour laboratory management assistant

The TO evolution software package provides a dedicated Laboratory Information Management System (LIMS) for odour labs which supports your laboratory in the process of delivering odour measurements of the highest quality.

Quality management and quality control is essential for any olfactometry lab.

The WiNose evolution LIMS supports you in managing and controlling the quality of your measurements by providing many useful laboratory management tools.

From qualifying your panel and keeping track of your lab performance, to managing reference gases, projects and clients, the WiNose evolution LIMS offers various options to support your day-to-day laboratory processes.

Full traceability of changes made to the LIMS database allow for stress-free audits with accreditation bodies.

Download the brochure below to learn more about the functionalities and benefits of the WiNose evolution LIMS.

Olfasense Olfactometer LIMS

pdf 2.3 MB

Download

Benefits

Improve your data availability

through web-based access within your network

Improve your data quality

through reduced transcription errors

Save valuable time in lab operation and management

through centralized management and dedicated tools for quality management and reporting

Find data quickly

with our advanced full-text search options

Reduce the effort

of accreditation audit preparation

Increase efficiency

through centralized user access via a web-interface

TO evolution control software

The TO evolution software package comes also with an olfactometer control software to support your laboratory in delivering odour measurements at the highest quality.

The TO evolution control software supports all relevant standards such as EN 13725:2003, AS 4323.1, ASTM 679, VDI 3882 Part 1 & Part 2. With its modern look and feel, and user friendly interface, the TO evolution software ensures fast and reliable measurements without overloading the user with operational information. Regardless of the level of experience of your operators, from the novice through to the highly experienced, the TO evolution software can give them the guidance and visual assistance that is needed to ensure measurements at the highest quality.

Improved usability for operators through a state-of-the-art user interface
Extended checkup features and test routines
Real-time acquisition of data
Integrated WiNose evolution LIMS interface ensures all results are instantly available in the LIMS and accessible to the users
Direct transmission of results to the WiNose evolution LIMS reduces the steps in producing documentation, and avoids error-prone manual copying & pasting of data
Keep the software up to date with the automated update mechanism (requires an active internet connection)
