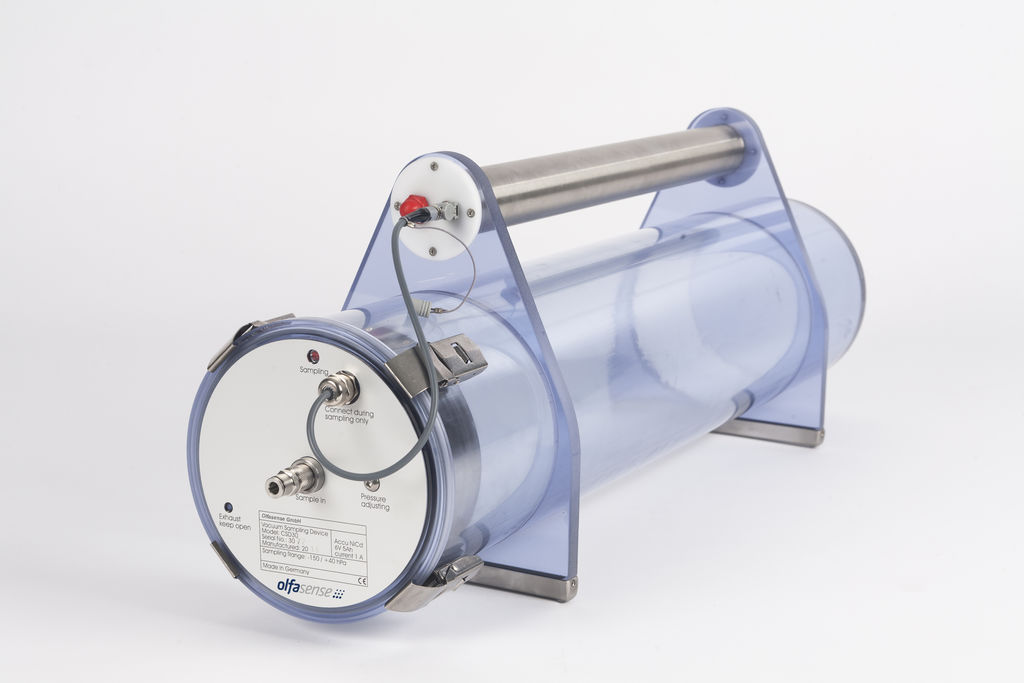

CSD30 odour sampling device

The CSD30 is a sampling device for collecting odour samples in gas sampling bags, with a default odour sampling duration of 30 minutes.

The CSD30 odour sampling device is available with different sample volumes: 10 l, 30 l, 60 l.

Using the lung principle, the sample flows into the gas sampling bag through the sampling tube only, without passing through pumps or other equipment.

The materials used for ‘wetted’ parts that are in contact with the sample flow are PTFE and stainless steel, in compliance with EN 13725.

The sample flow is regulated using a calibrated nozzle that’s integrated in the sampling device. Other nozzles, flows and filling times are available on request.

The odour sampling rate is independent of the static pressure conditions at the sampling point if the pressure difference is less than 150 mbar. The sampling flow is closed automatically once the gas sampling bag is full. Alternatively, you can select a shorter sampling duration using a countdown timer.

The CSD30 odour sampling device operates from its integrated rechargeable NiCd battery, so it does not require an AC power connection. The device is also robust and easy to operate.

CSD30 odour sampling device

Standards

The CSD30 odour sampling device is fully compliant with:

  • VDI 3880
  • EN 13725

    Facts

    • Available sample volumes: 10 l, 30 l, 60 l
    • Microprocessor-controlled pump, flow controlled by orifice disc
    • 5-minute, 10-minute, 15-minute or 30-minute continuous sampling
    • Easily portable
    • Stops automatically
    • High-quality rechargeable batteries (last for about 16 x 30-minute samples)

    Additional images

    Technical Data

    General Details

    Sample volume: 10 l
    Manufacturer
    Olfasense GmbH, Germany
    Dimension (L x W x H)
    700 x 190 x 260 mm
    Weight
    4.8 kg
    Warranty
    24 months (warranty extension up to 5 years through service contracts possible)
    Sample volume: 30 l
    Manufacturer
    Olfasense GmbH, Germany
    Dimension (L x W x H)
    640 x 420 x 350 mm
    Weight
    11.2 kg
    Warranty
    24 months (warranty extension up to 5 years through service contracts possible)
    Sample volume: 60 l
    Manufacturer
    Olfasense GmbH, Germany
    Dimension (L x W x H)
    1040 x 420 x 350 mm
    Weight
    13.9 kg
    Warranty
    24 months (warranty extension up to 5 years through service contracts possible)

    Technical Specifications

    Sample volume: 10 l
    Sample volume (bag size)
    10 l
    Filling time
    30, 15, 10 or 5 minutes
    Suction pressure
    50 mbar
    Battery NiCd
    6V 5Ah
    Sample volume: 30 l
    Sample volume (bag size)
    30 l
    Filling time
    30, 15, 10 or 5 minutes
    Suction pressure
    50 mbar
    Battery NiCd
    6V 5Ah
    Sample volume: 60 l
    Sample volume (bag size)
    60 l
    Filling time
    30, 15, 10 or 5 minutes
    Suction pressure
    50 mbar
    Battery NiCd
    6V 5Ah
