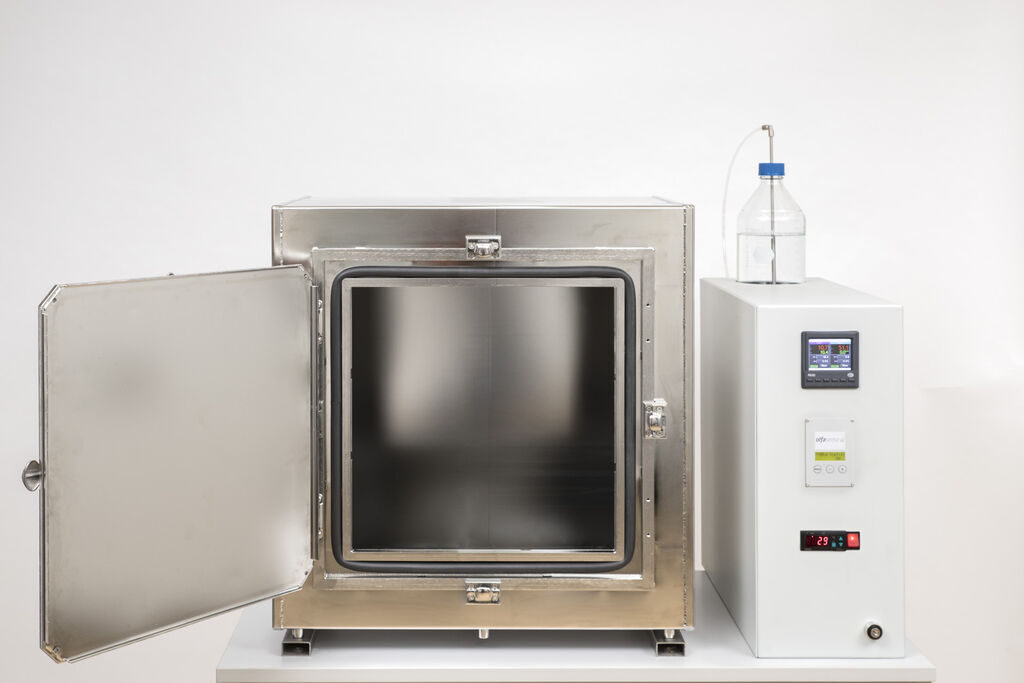

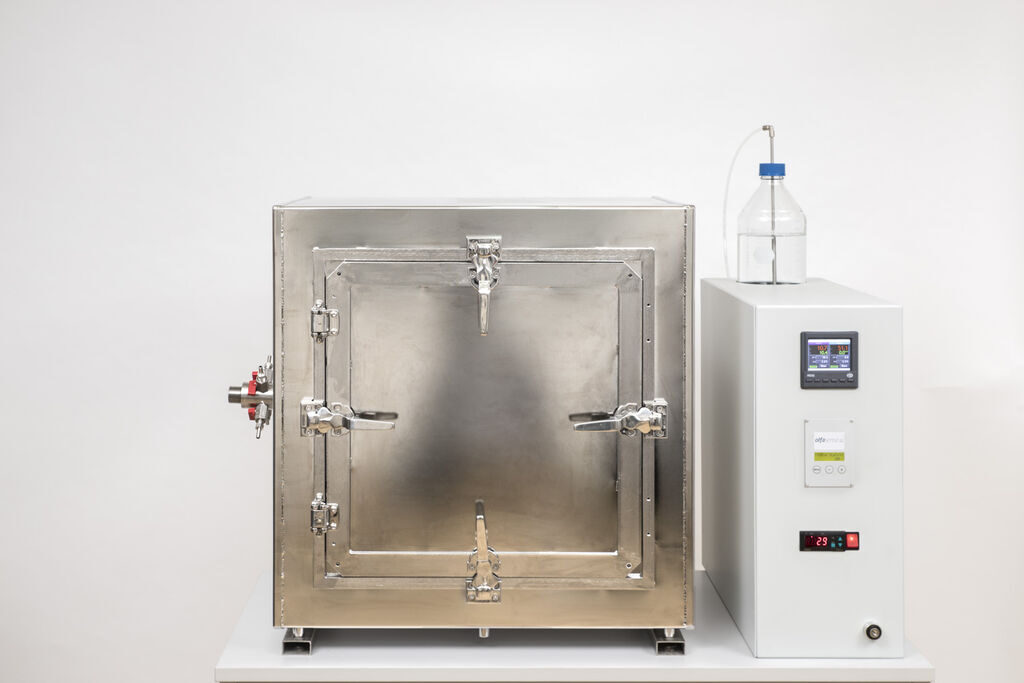

VOC emissie testkamer EK250B
De kwaliteit van binnenlucht wordt sterk beïnvloed door de vluchtige organische componenten (VOC’s) die vrijkomen uit materialen en producten, zoals constructie- en bouwproducten, waaronder kleefstoffen, meubels, verven en nog veel meer.
Onze emissie testkamer EK250B maakt het mogelijk om de VOC’s te karakteriseren bij nauwkeurig afgestemde testcondities, en voldoet volledig aan de eisen uit ISO 16000-9, EN 16516, EN 717-1 en de GEV testmethode.
De Olfasense emissie testkamers zijn ontwikkeld in nauwe samenwerking met experts uit zowel de industrie als R&D, en kunnen worden gebruikt voor een breed spectrum aan analytische onderzoeken. De testkamers beschikken over 4 monsternameopeningen.
Specificaties
- 250l VOC emission test chamber (225l, 240l or other volumes optionally available)
- Fully compliant with:
- ISO 16000-9 (VOC emissions from building products and furnishing)
- EN 16516 (VOC emissions from construction products)
- EN 717-1 (Formaldehyde emissions from wood-based panels)
- GEV Testing Method (VOC emissions from products for flooring installation, adhesives and building materials)
- Compact, robust, competetively priced
- „Emission-free“ test chamber
- High accuracy and performance of all normative parameters
- Adjustable ventilation fan and (optional) hot-wire anemometer for optimized test specimen location
- Prevention of contamination from the surrounding environment
- Minimal adsorption effects
If you have additional requirements, please ask for your tailormade product solution.
Extra afbeeldingen
Klantenfeedback
We have been using Olfasense’s emission test chambers since market launch and we are very satisfied with both the product and the service. In our recent ISO 17025 accreditation audit, the installed emission test chambers have been successfully approved by the German accreditation body DAkkS, and are now included under the accreditation scope of Hohenstein Textile Testing Institute.
Rainer Fusenig, Assistant Head of Laboratory, Hohenstein Textile Testing Institute
DSM Coating Resins makes products used in paints and lacquers, and is driven to low VOC emissions. For our VOC measurements, we have been using Olfasense’s EK250 emission test chamber for half a year now. We are very content with both the installation and the service of Olfasense. The EK250 is robust and easy in use and it meets our expectations as we are now fully compliant with the ISO 16000-9 standard.
Diane de Bruijne, R&D associate scientist, DSM Coating Resins
Technische gegevens
687 x 962 x 1824 mm - size of chamber rack
612 x 832 x 1820 mm - size of base unit
40 kg - of chamber rack
140 kg - weight of base unit
(225l, 240l or other volumes optionally available)
(other connections optionally available)
